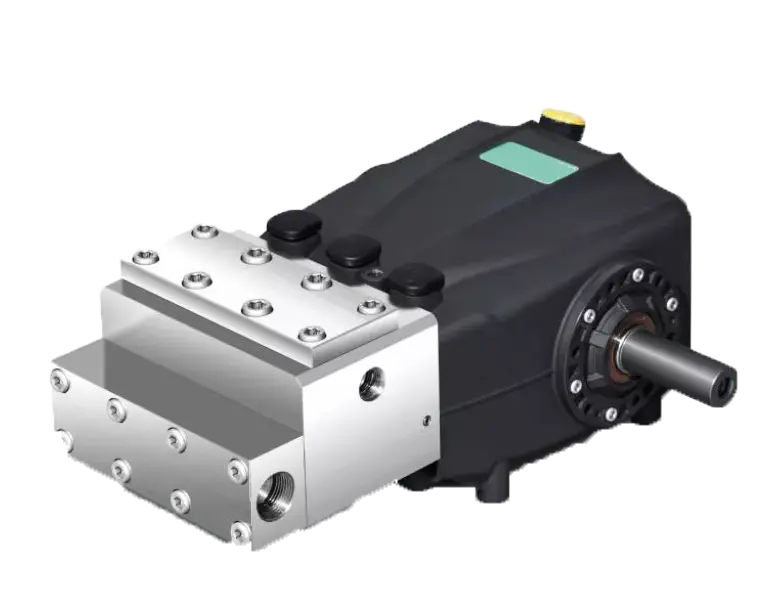

GDT Series
Available in a range from 250 bar to 600 bar, making it suitable for both commercial and industrial applications.
| Model | FLOW | PRESSURE |
POWER | ||||
| L/MIN | GPM | BAR | PSI | Mpa | HP | kW | |
| GDT 18 | 29 | 7.6 | 600 | 8700 | 60 | 46 | 34 |
| GDT 20 | 36 | 9.5 | 450 | 6525 | 45 | 42 | 31 |
| GDT 22 | 43 | 11.3 | 300 | 4350 | 30 | 34 | 25 |
| GDT 25 |
56 | 14.8 | 250 | 3625 | 25 | 37 | 27 |
Key Features:
1. High-grade super-alloy crank box and crankshaft.
2. Customized flange designed for seamless motor connection.
3. Pump head crafted from durable stainless steel.
4. Integrated functional check valve for optimal performance.
5. Robust connecting rod ensuring longevity.
6. Industry-specific pump tailored for specialized applications.
| Pump Model | GDT |
| Shaft and Flange | N 30mm |
| Max. Input Power | 34kW/46hp |
| Max. Input RPM | 1450 rpm |
| Max. Pressure | 600bar/8700psi |
| Max. Flow | 56Lpm/14.8Gpm |
| Weight | 39 Kg |
| Application | High Pressure Water |
