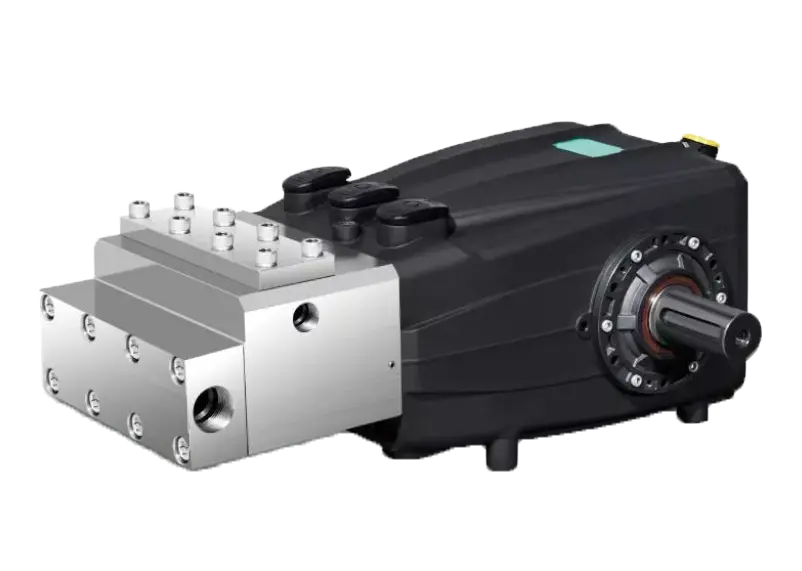

GDF Series
Available from 280 bar until 600 bar which suitable to meet your industrial application needs.
| Model | FLOW | PRESSURE |
POWER | ||||
| L/MIN | GPM | BAR | PSI | Mpa | HP | kW | |
| GDF 18 |
30 | 8.1 | 600 | 8700 | 60 | 49 | 36 |
| 38 | 10.1 | 500 | 7250 | 50 | 50 | 37 | |
| GDF 20 | 47 | 12.4 | 400 | 5800 | 40 | 50 | 37 |
| GDF 22 |
45 | 12.0 | 400 | 5800 | 40 | 49 | 36 |
| 57 | 15.0 | 350 | 5057 | 35 | 50 | 37 | |
| GDF 25 |
73 | 19.3 | 280 | 4060 | 28 | 50 | 37 |
Key Features:
1. High-grade super-alloy crank box and crankshaft.
2. Customized flange designed for seamless motor connection.
3. Pump head crafted from durable stainless steel.
4. Integrated functional check valve for optimal performance.
5. Robust connecting rod ensuring longevity.
6. Industry-specific pump tailored for specialized applications.
| Pump Model | GDF |
| Shaft and Flange | N 40mm |
| Max. Input Power | 37kW/50hp |
| Max. Input RPM | 1000 rpm |
| Max. Pressure | 600bar/8700psi |
| Max. Flow | 73Lpm/19.3Gpm |
| Weight | 62.5 Kg |
| Application | High Pressure Water |
