DSP Series

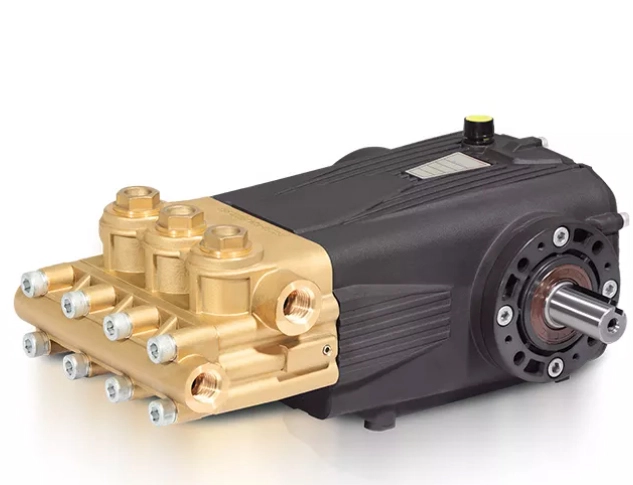

Our DSP Series is a type of Triplex Plunger Pump, meticulously crafted for a wide range of high-pressure cleaning tasks. Engineered with a robust die-cast crankcase and a forged brass head, this pump ensures durability and reliability. Its internal components feature solid ceramic-coated plungers, tapered roller bearings, a one-piece connecting rod, and stainless steel checking valves, guaranteeing optimal performance and longevity. Experience unparalleled efficiency and power with our Triplex Plunger Pump, designed to meet your most demanding cleaning needs
| Model | FLOW | PRESSURE | POWER | |||
| L/MIN | GPM | BAR | PSI | HP | kW | |
| DSP 2250 | 22 | 5.81 | 500 | 7250 | 30 | 22 |
| DSP 3050 | 28 | 7.39 | 500 | 7250 | 38 | 28 |
| DSP 4020 | 38 | 10.03 | 200 | 2900 | 20 | 15 |
| DSP 5215 | 51 | 13.46 | 150 | 2175 | 15 | 15 |
Key Features:
1. Super-alloy crank box and crankshaft for enhanced durability and performance.
2. Specifically designed flange for seamless motor connection.
3. Cast copper pump head ensures robust construction and reliability.
4. Functional checking valve enhances overall product functionality.
5. Durable connecting rod for long-lasting use and stability.
| Pump Model | DSP |
| Shaft and Flange | N-24 mm |
| Plunger Diameter | 28 mm |
| Stroke | 21 mm |
| Max. Input Power | 15 kW |
| Max. Input RPM | 1450 rpm |
| Max. Pressure | 150 bar |
| Max. Flow | 51 lpm |
| Weight | 19 Kg |
| Application | High Pressure Water |
